DTC Inspection [Auto Light/Wiper Control Module]

Connect the M-MDS (IDS) to the DLC-2.

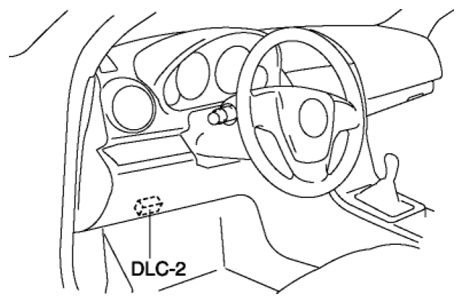

Fig 1: Identifying DLC-2 Location
After the vehicle is identified, select the following items from the initialization screen of the IDS.
- Select "Self Test".
- Select "Modules".
- Select "LCM".
Verify the DTC according to the directions on the screen.
- If any DTCs are displayed, perform troubleshooting according to the corresponding DTC inspection.
After completion of repairs, clear all DTCs stored in the auto light/wiper control module.
(See CLEARING DTC [AUTO LIGHT/WIPER CONTROL MODULE] .)
