DTC B1026:87 [Advanced Keyless Entry And Push Button Start System]: Notes

DETECTION CONDITION	Communication error between keyless control module and steering lock unit

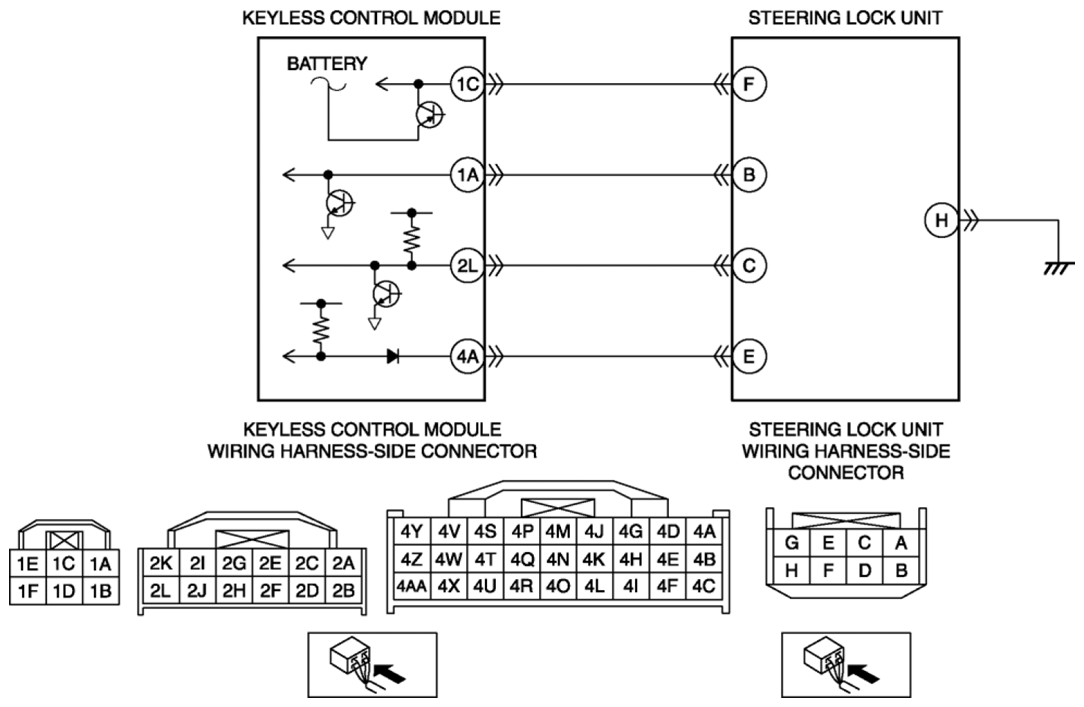

POSSIBLE CAUSE	Connector or terminal malfunction Short to ground in wiring harness between steering lock unit terminal C and keyless control module terminal 2L Short to power supply in wiring harness between steering lock unit terminal C and keyless control module terminal 2L Open circuit in wiring harness between steering lock unit terminal C and keyless control module terminal 2L Steering lock unit malfunction Keyless control module malfunction
