DTC B10C8:1F [Advanced Keyless Entry And Push Button Start System]: Notes

DETECTION CONDITION	Cannot receive signal correctly from keyless antenna (interior, center)

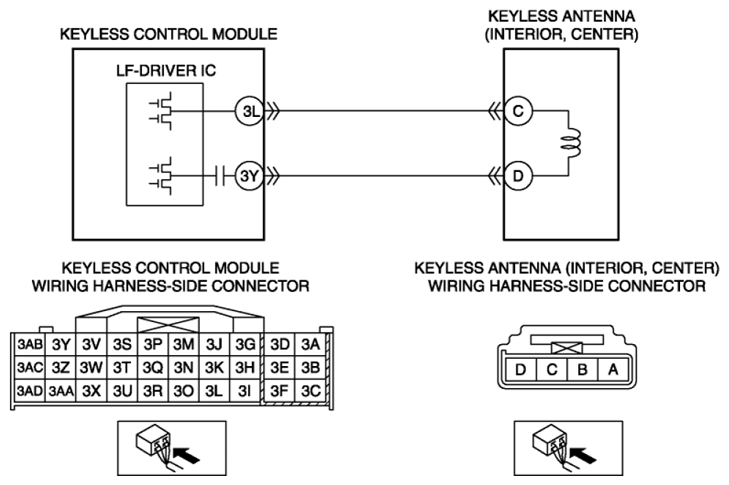

POSSIBLE CAUSE	Connector or terminal malfunction Short to ground in the wiring harness between keyless antenna (interior, center) terminal C and keyless control module terminal 3L Short to ground in the wiring harness between keyless antenna (interior, center) terminal D and keyless control module terminal 3Y Short to power supply in the wiring harness between keyless antenna (interior, center) terminal C and keyless control module terminal 3L Short to power supply in the wiring harness between keyless antenna (interior, center) terminal D and keyless control module terminal 3Y Open circuit in the wiring harness between keyless antenna (interior, center) terminal C and keyless control module terminal 3L Open circuit in the wiring harness between keyless antenna (interior, center) terminal D and keyless control module terminal 3Y Keyless antenna (interior, center) malfunction Keyless control module malfunction
