Door Lock Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove the inner handle. (See INNER HANDLE REMOVAL/INSTALLATION .)
  5. Remove the screws, then remove the door lock switch.

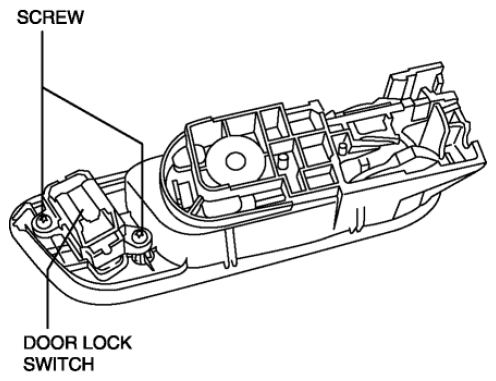

    Fig 1: Identifying Screws And Door Lock Switch
    G08144496
  6. Install in the reverse order of removal.
