Front Inner Handle

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Disconnect the door lock switch connector.

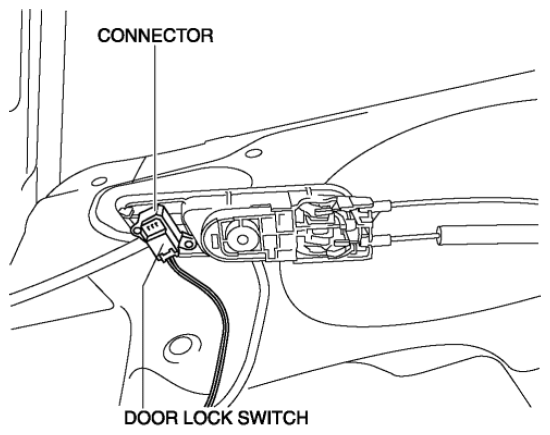

    Fig 1: Identifying Door Lock Switch And Connector
    G08144493
  5. Disconnect each cable and remove the front inner handle.

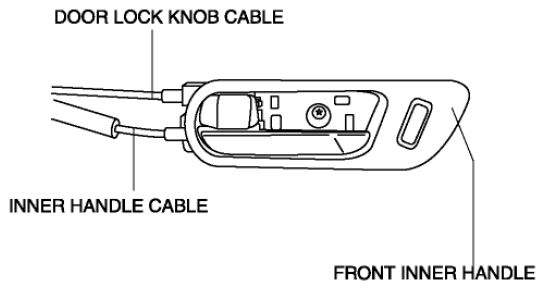

    Fig 2: Identifying Front Inner Handle, Cable And Door Lock Knob Cable
    G08144494
  6. Install in the reverse order of removal.
