Dashboard Disassembly/Assembly

  1. Remove the ventilator grilles (See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
  2. Disassemble in the order indicated in the table.
  3. Assemble in the reverse order of disassembly.

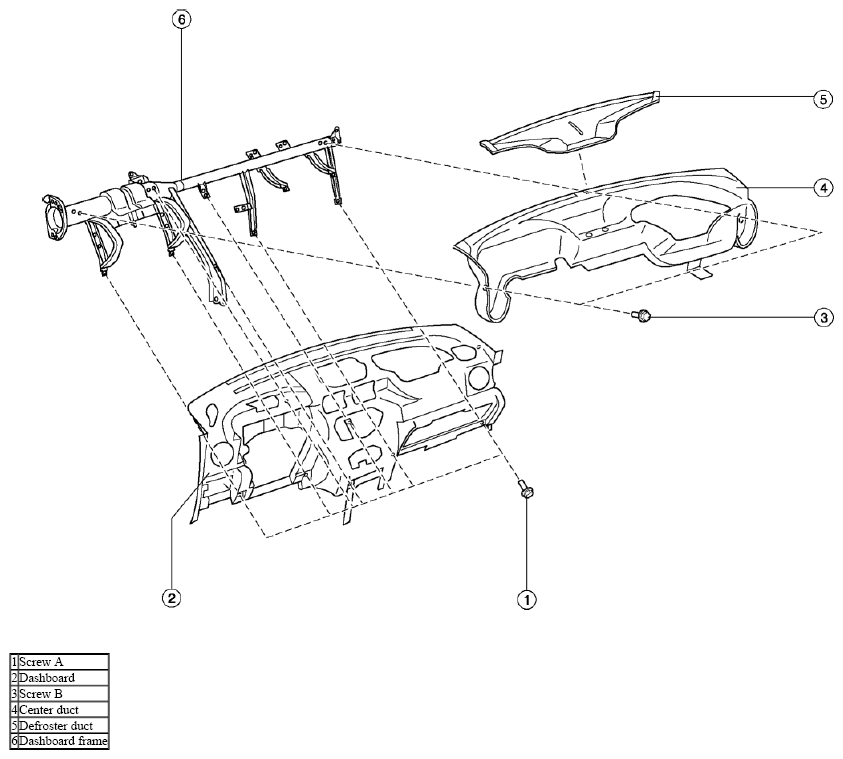

    Fig 1: View Of Dashboard Components
    G08144704
