Key Reminder Switch Inspection [Without Advanced Keyless Entry And Push Button Start System]

Disconnect the negative battery cable.
Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
Disconnect the key reminder switch connector.

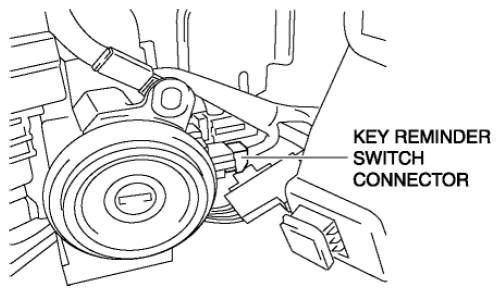

Fig 1: Identifying Key Reminder Switch Connector
Courtesy of MAZDA MOTORS CORP.
Verify that the continuity between the key reminder switch terminals is as indicated in the table.

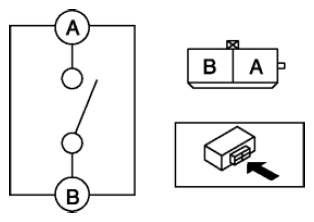

Fig 2: Key Reminder Switch Circuit
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the key reminder switch.

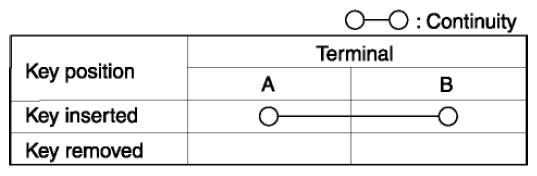

  Fig 3: Key Reminder Switch Terminals Continuity Chart
  Courtesy of MAZDA MOTORS CORP.
