Relay Location

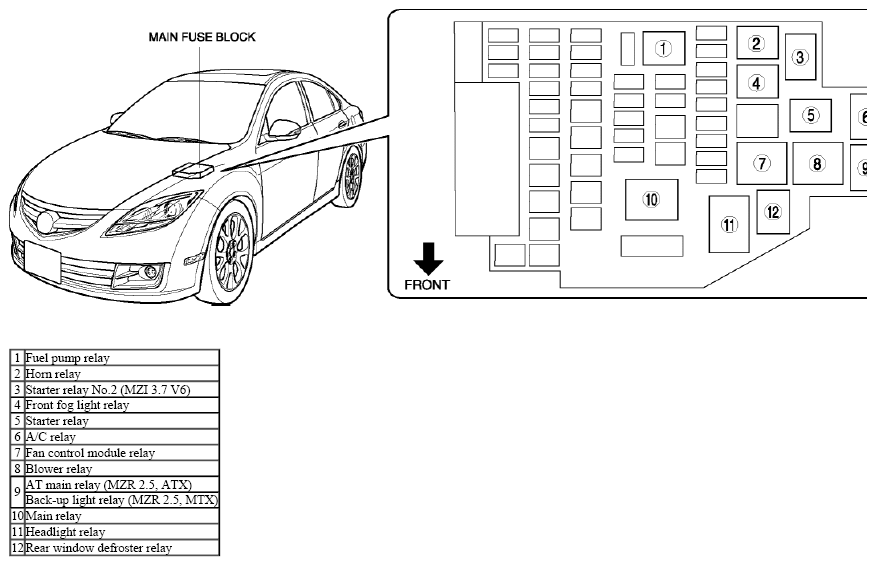

Fig 1: Identifying Main Fuse Block Relays

G08145052

Courtesy of MAZDA MOTORS CORP.

ENGINE ROOM MAIN FUSE BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Fuel Pump Relay
Horn Relay
Starter Relay No. 2
Front Fog Light Relay
Starter Relay
A/C Relay
Fan Control Module Relay
Blower Relay
AT Main Relay
Back-Up Light Relay
Main Relay
Headlight Relay
Rear Window Defroster Relay
