Information Display Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the center panel upper. (See CENTER PANEL UPPER REMOVAL/INSTALLATION .)
  3. Remove the bolts, then remove the information display from the center panel upper.

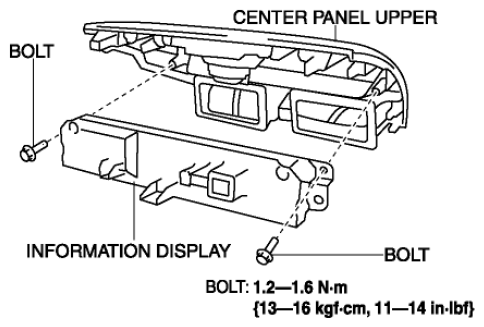

    Fig 1: Center Panel Upper, Information Display And Bolts With Torque Specification
    G08145078
  4. Install in the reverse order of removal.
