Auto Light-Off Control Module Removal/Installation
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the dashboard under cover (Driver side). (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)

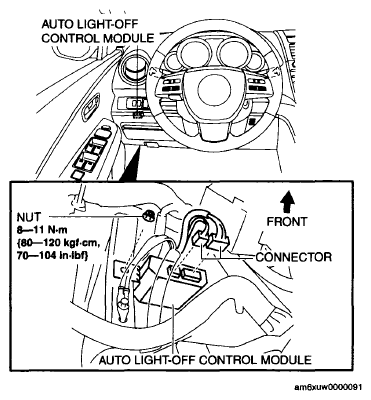

- Remove the nut.
- Disconnect the connectors.
- Remove the auto light-off control module.
- Install in the reverse order of removal.
