Headlight Aiming

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Point the headlight beams to a wall and verify that the headlight beams are as shown in the figure.

Fig 1: Identifying Brightness Borderline
Courtesy of MAZDA MOTORS CORP.
Make a screen as shown in the figure using double-weight, white paper.
Adjust the tire pressure to the specification.
Position the unloaded vehicle on a flat, level surface.
Seat one person in the driver's seat.
Line up the vehicle with the wall so that the center of the headlight is 3 m {9.8 ft} away from the wall.

Fig 2: Identifying Center Of Head Light

Courtesy of MAZDA MOTORS CORP.

Measure the height at the center of the headlight.
NOTE:
- Since the height of the vehicle varies depending on the vehicle situation, measure the height of the center of the headlight using the actual vehicle.

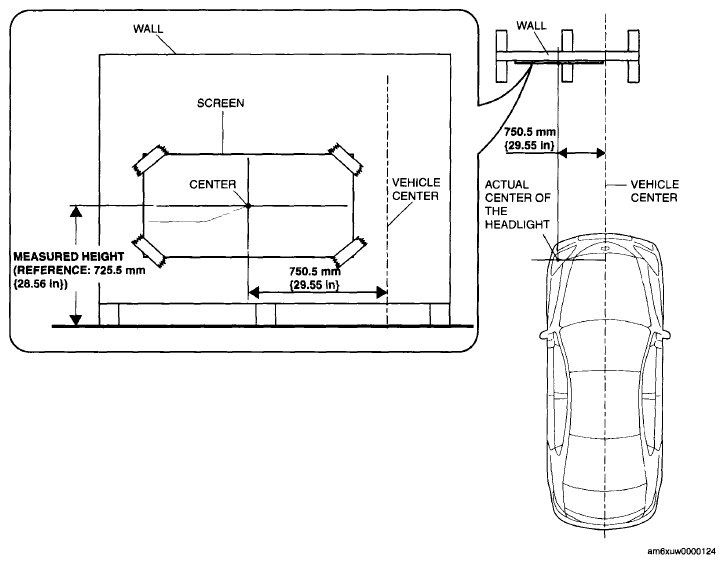

Fig 3: Identifying Headlight Aiming Position
Courtesy of MAZDA MOTORS CORP.
Align the center of the headlight with the center of the screen.

Fig 4: Aligning Center Of Headlight With Center Of Screen
Courtesy of MAZDA MOTORS CORP.
Block the light of the other headlight using a partition.
Start the engine and charge the battery.
Turn on the headlight low beams.
Set the headlight leveling switch to the 0 position, (vehicles with headlight leveling switch)
Verify that the elbow point of the headlight is in the position indicated on the screen
- If the elbow point is not in the position indicated on the screen, perform the following adjustment
  1. Insert a Phillips driver into the position shown in the figure and adjust the headlights.

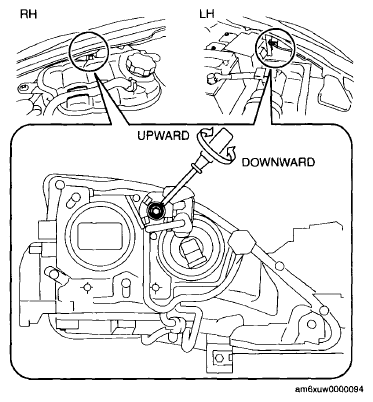

  Fig 5: Adjusting Headlights
  Courtesy of MAZDA MOTORS CORP.
