Headlight Leveling Switch Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts
    1. Front scuff plate (driver-side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION )
    2. Front side trim (driver-side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    4. Decoration panel (driver-side) (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
    6. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
    7. Lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
  3. Remove the tabs.

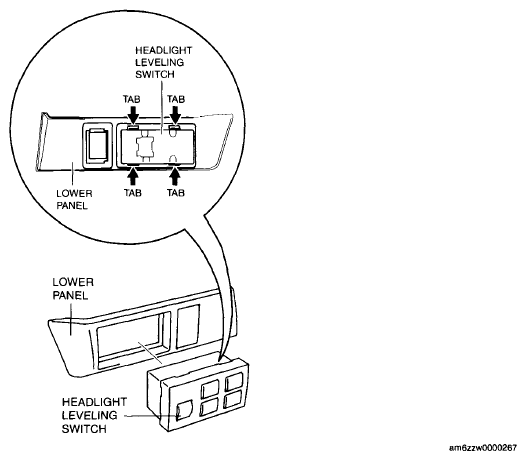

    Fig 1: Identifying Headlight Leveling Switch Components
    G06201090Courtesy of MAZDA MOTORS CORP.
  4. Remove the headlight leveling switch.
  5. Install in the reverse order of removal.
