Light Switch Removal/Installation
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
- Disconnect the connector.

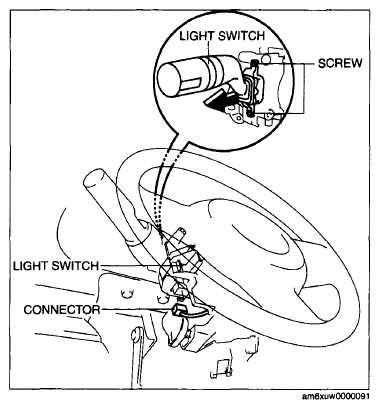

- Remove the screws shown in the figure, then remove the light switch by pulling it in the direction of the arrow.
- Install in the reverse order of removal.
