Map Light Removal/Installation: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Open the overhead console.
  3. Remove in the order indicated in the table.

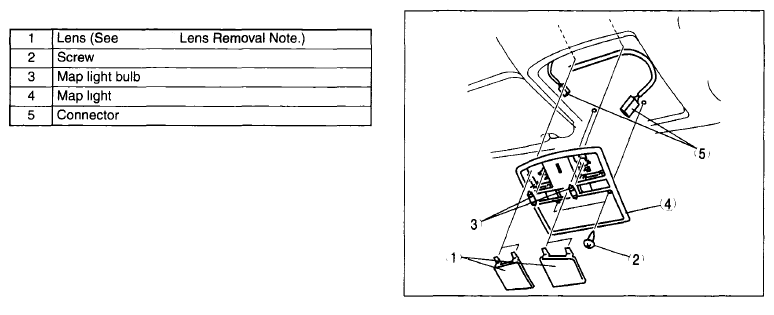

    Fig 1: Identifying Map Light Components
    G06201102Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
