With Bluetooth System

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

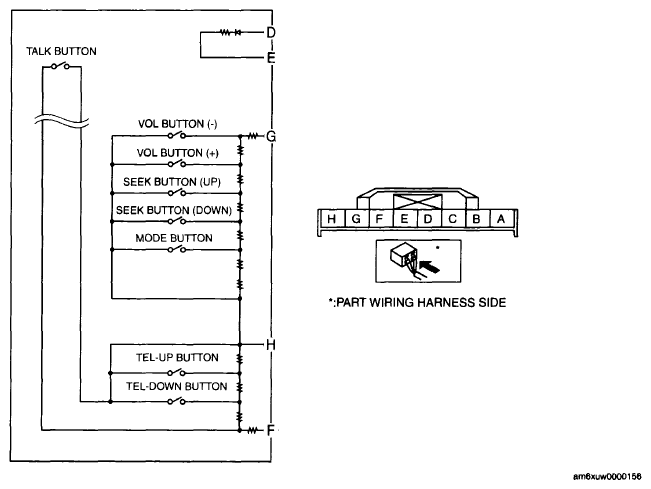

Fig 1: Identifying Audio Control Switch With Bluetooth System

Courtesy of MAZDA MOTORS CORP.

If the resistance and continuity are not as indicated in the tables, replace the audio control switch.

Fig 2: Bluetooth Position Terminal Resistance Chart
Courtesy of MAZDA MOTORS CORP.

Fig 3: Bluetooth Position Terminal Resistance Chart
Courtesy of MAZDA MOTORS CORP.

7. Apply battery positive voltage to audio control switch terminal D, and connect terminal E to ground.
8. Verify that the LED illuminates.
- If the LED does not illuminate, replace the audio control switch.

  Fig 4: Identifying Audio Control Switch Connector Terminal
  Courtesy of MAZDA MOTORS CORP.
