Car-Navigation Unit Removal/Installation: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Upper panel. See UPPER PANEL REMOVAL/INSTALLATION .
    2. Decoration panel. See DECORATION PANEL REMOVAL/INSTALLATION .
    3. Shift knob (MTX). See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .
    4. Shift panel. See SHIFT PANEL REMOVAL/INSTALLATION .
    5. Center panel lower. See CENTER PANEL LOWER REMOVAL/INSTALLATION .
    6. Center panel upper. See CENTER PANEL UPPER REMOVAL/INSTALLATION .
    7. Climate control unit. See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] . See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .
  3. Remove in the order indicated in the table
  4. Install in the reverse order of removal.
    CAUTION:
    • When installing the car-navigation unit, make sure that the wiring harness and antenna feeder are not caught between the unit and dashboard. If the wiring harness or the antenna feeder is caught between the unit and dashboard, it may cause malfunctions.

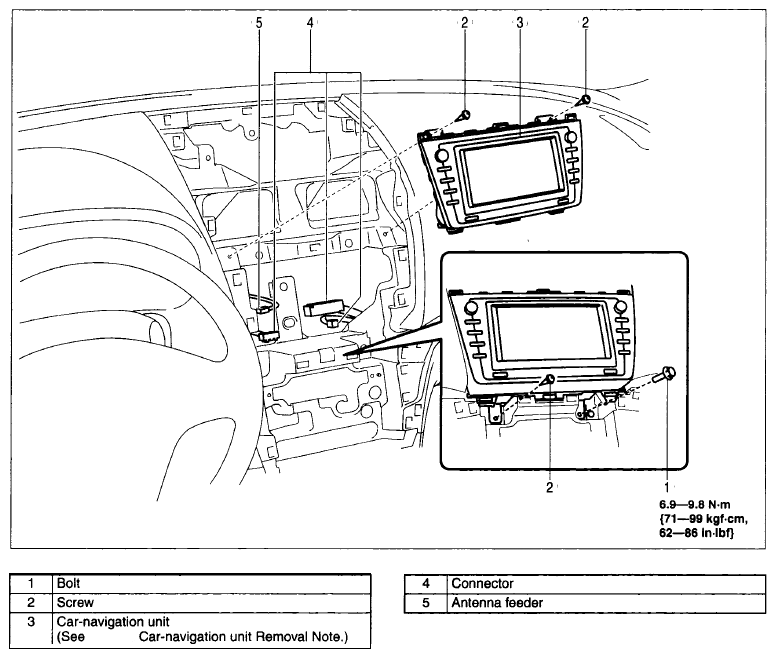

      Fig 1: Identifying Car-Navigation Unit, Antenna Fender, Connector And Screw
      G06201130Courtesy of MAZDA MOTORS CORP.
