Caliper (Front) Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of removal.

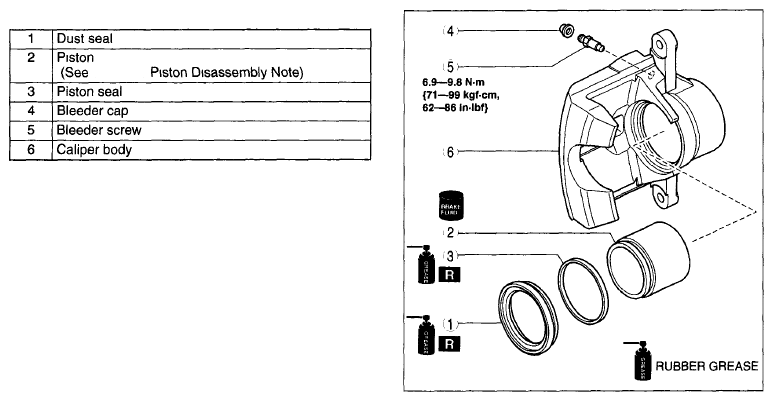

    Fig 1: Caliper Removal/Installation Order With Torque Specifications (Front)
    G06200026Courtesy of MAZDA MOTORS CORP.
