Coil Antenna Removal/Installation [Advanced Keyless Entry And Push Button Start System]
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
- Disconnect the coil antenna connector.
- Remove the screw.

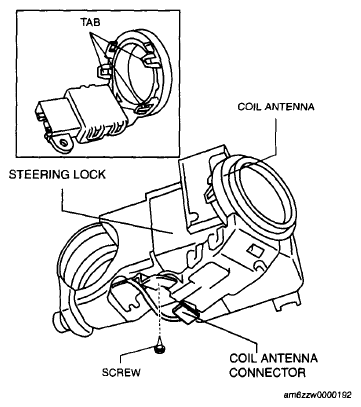

- Detach the coil antenna hooks and remove the coil antenna from the steering lock
- Install in the reverse order of removal
