No. 1 Additional Key Programming Procedure (Using Two Valid Keys): Procedure
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

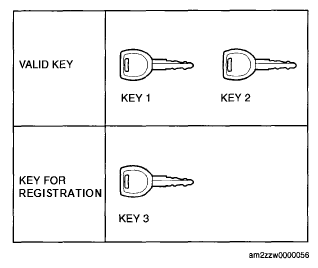

Courtesy of MAZDA MOTORS CORP. ADDITIONAL KEY PROGRAMMING PROCEDURE (USING TWO VALID KEYS)
| Step |
Procedure |
Action after procedure |
| 1 |
LAUNCH PROGRAMMING MODE
- Switch the ignition to ON using key 1
- After verifying that the security light illuminates for approx. 3 s and turns off, switch the ignition off within approx. 4 s using key 1
- Remove key 1.
- Switch the ignition to ON using key 2.
- After verifying that the security light illuminates for approx. 3 s and turns off, switch the ignition off within approx. 4 s using key 2.
- Remove key 2.
|
Go to the next step. |
| 2 |
PERFORM ADDITIONAL KEY PROGRAMMING
- Switch the ignition to ON using key 3.
- Verify that the security light illuminates for approx. 3 s
, and then turns off.
- Remove key 3.
- Are there other keys to be programmed?
|
Yes |
Go back to Step 1. |
| No |
Go to the next step. |
| 3 |
VERIFY THAT ANY KEY IS PROGRAMMED
- Verify that the engine can start and run for 5 s or more using all the programmed keys.
NOTE:
- When verifying that the engine starts, wait at least 5 s or more
before starting the engine using the next key.
|
Procedure is completed |
