Vehicle Interior, Front

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION )
    2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    5. Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION .)
    6. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
  3. Disconnect the connector.
  4. Remove the keyless antenna.
  5. Install in the reverse order of removal.

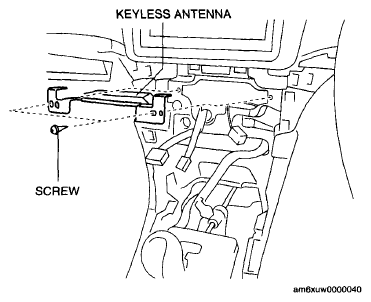

Fig 1: Identifying Keyless Antenna & Screw
G06200982Courtesy of MAZDA MOTORS CORP.
