Advanced Keyless Entry And Push Button Start System/Immobilizer System

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

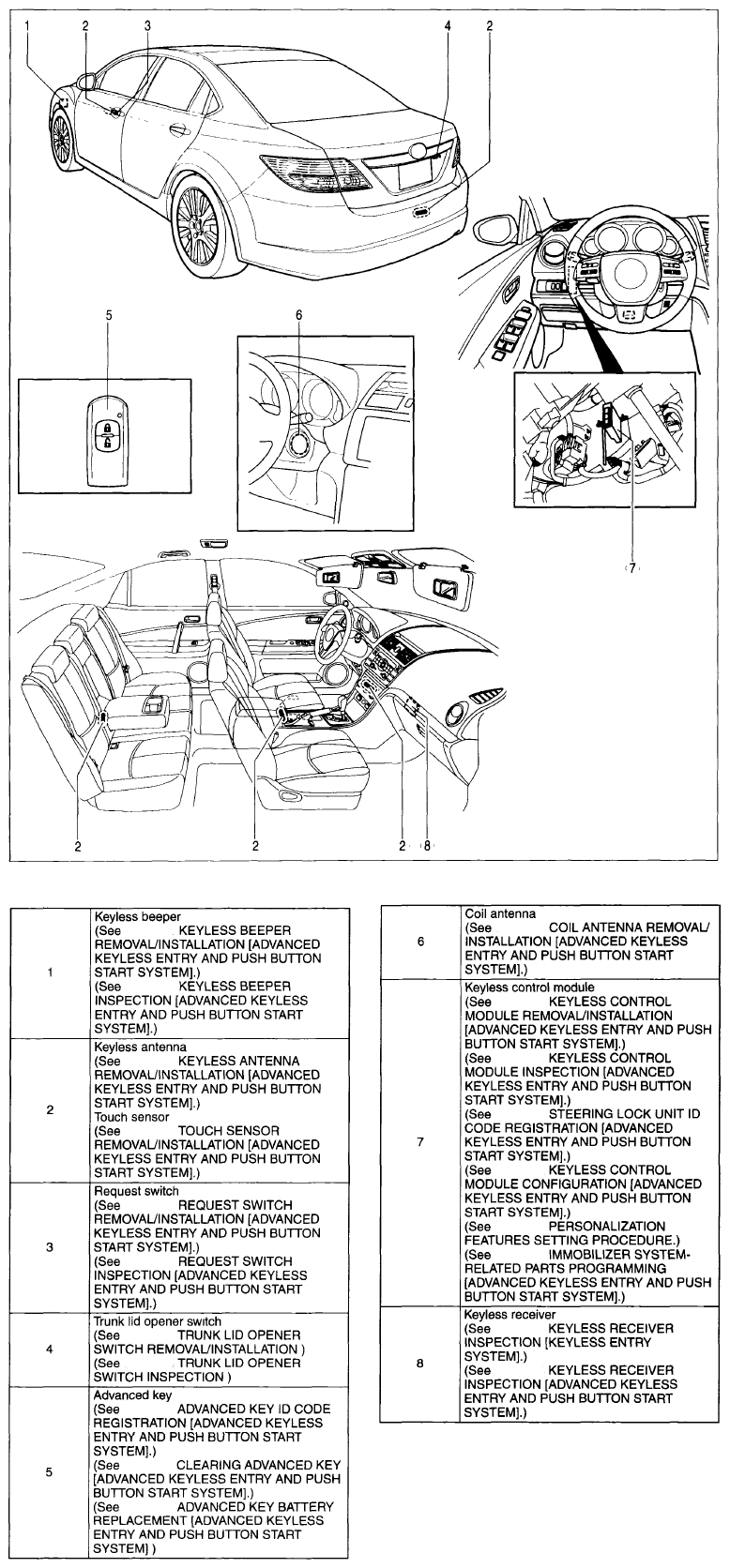

Fig 1: Identifying Advanced Keyless Entry & Push Button Start System/Immobilizer System Components
G06200857Courtesy of MAZDA MOTORS CORP.
