Vehicle Exterior (With Advanced Keyless Entry And Push Button Start System)
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the rear finisher. (See REAR FINISHER REMOVAL/INSTALLATION .)

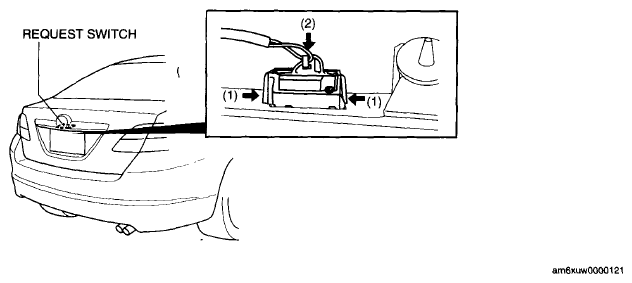

- Remove the request switch in the direction of the arrow (2) shown in the figure while pressing the request warning switch tabs in the direction of the arrow (1).
- Install in the reverse order of removal.
