DTC U2030 [Auto Light/Wiper Control Module]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
U2030 REFERENCE
| DESCRIPTION |
Rain sensor/auto light sensor communication fault |
| DETECTION CONDITION |
Communication error to rain sensor/auto light sensor |
| POSSIBLE CAUSE |
- Connector or terminal malfunction

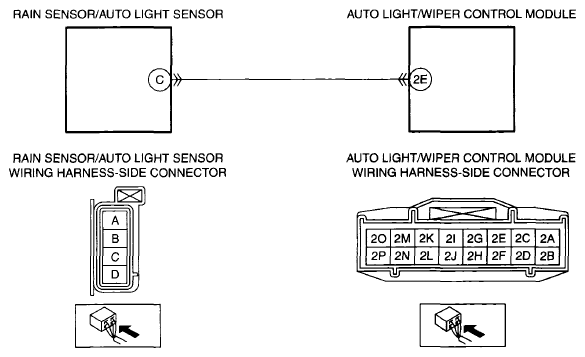

- Short to ground in wiring harness between auto light/wiper control module terminal 2E and rain sensor/auto light sensor terminal C
- Short to power supply in wiring harness between auto light/wiper control module terminal 2E and rain sensor/auto light sensor terminal C
- Open circuit in wiring harness between auto light/wiper control module terminal 2E and rain sensor/auto light sensor terminal C
- Rain sensor/auto light sensor malfunction
- Auto light/wiper control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
