Manual Transaxle Installation Note
WARNING: This page is about a different variant/trim than selected.
WARNING:
- Install the transaxle carefully, holding it steady. If the transaxle falls it could be damaged or cause injury.
- Set the transaxle on a jack and lift into place.
- Install the transaxle mounting bolts.
- Adjust the SST (49 C017 5A0) so that the engine is located at the specified position.

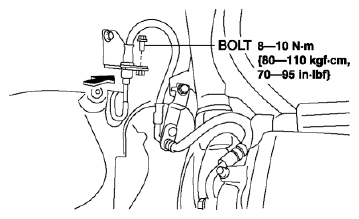

- Install the brake hose to the bracket and tighten the bolt shown in the figure.
