Rear Buckle Removal/Installation

  1. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  2. Remove the bolt.

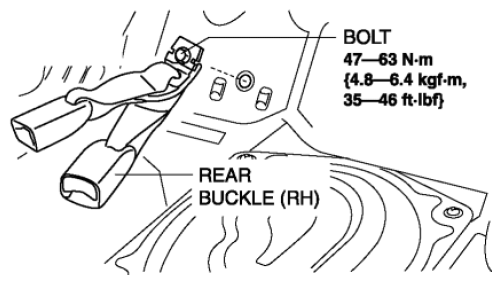

    Fig 1: Rear Buckle (RH) And Bolt With Torque Specification
    G08143870
  3. Remove the rear buckle (RH).
  4. Remove the rear buckle (LH). (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION .)
  5. Install in the reverse order of removal.
