Bush Assembly Note

Assemble the bush to the valve housing using the SST and a press.

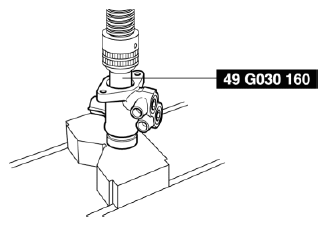

Fig 1: Pressing Bush To Valve Housing Using SST

Substitution SST
- 49 G030 160
  Outer diameter: 28-32 mm {1.11-1.25 in}
