Steering Gear And Linkage Assembly: Notes

CAUTION:

To prevent damage to the steering gear when securing it in a vice, always secure it using aluminum plates and clean rags.

Assemble in the order indicated in the figure.

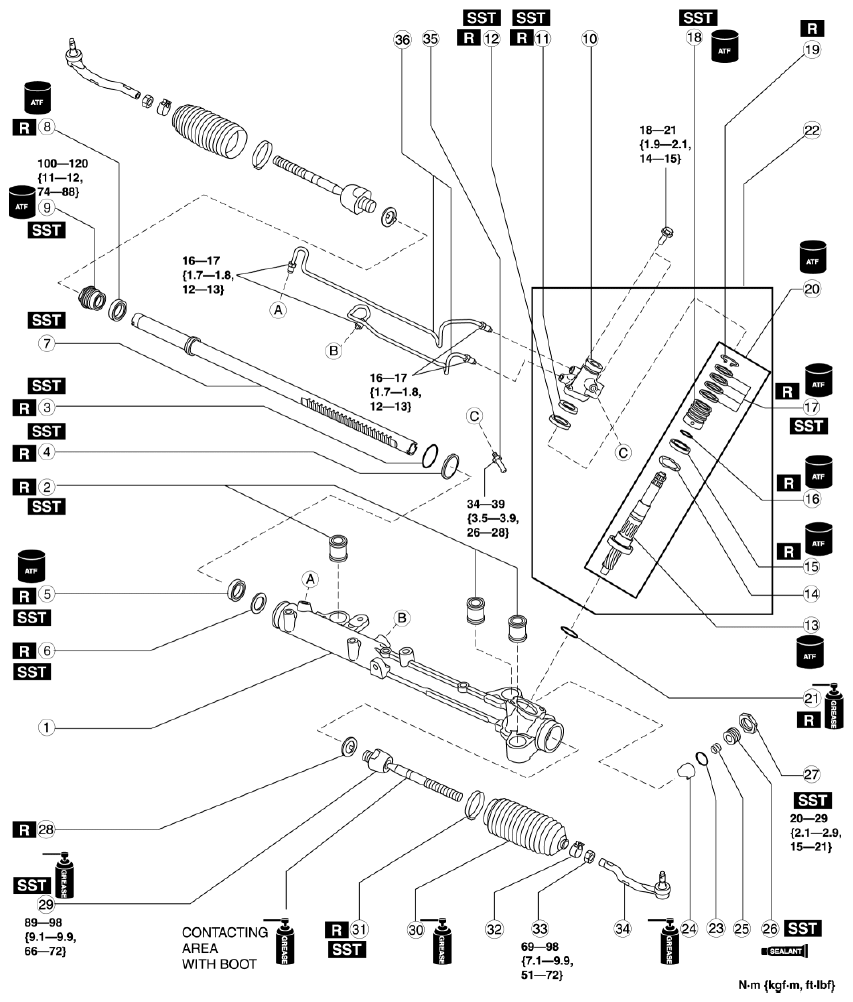

Fig 1: Steering Gear And Linkage Assembly Components With Torque Specifications (1 Of 2)

Fig 2: Steering Gear And Linkage Assembly Components With Torque Specifications (2 Of 2)
