Steering Dust Cover Installation Note

  1. Install the steering dust cover to the dashboard lower panel.
  2. Verify that the lip area of the steering dust cover is securely installed to the steering gear, and the tabs are installed to the dashboard lower panel.

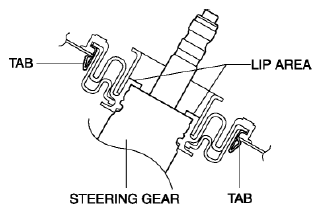

    Fig 1: Identifying Steering Gear And Lip Area
    G08143413
