Steering Shaft Component Installation Note

CAUTION:
  • Do not unlock the adjusting lever until after the steering shaft installation is completed to prevent damage to the steering shaft.
  1. Verify that the adjusting lever is in the LOCK position.
  2. Temporarily install the steering shaft component to the dashboard member using nuts A and B.

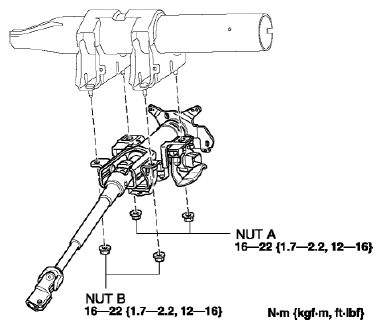

    Fig 1: Steering Shaft Component, Dashboard Member And Nuts With Torque Specification
    G08143417
  3. Tighten the nuts in the order of nut A and nut B.
