Joint Bolt (Intermediate Shaft) Installation Note

  1. If the intermediate shaft joint is mistakenly detached while servicing, align the alignment marks placed during the joint bolt removal and connect the intermediate shaft.

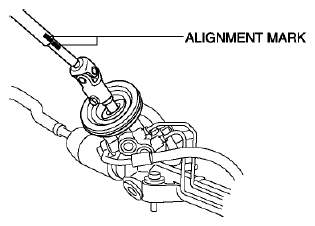

    Fig 1: Identifying Alignment Marks On Intermediate Shaft Joint
    G08143406
  2. Align the marks made during removal and install the intermediate shaft joint to the steering gear.

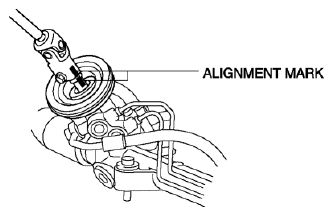

    Fig 2: Identifying Alignment Marks On Intermediate Shaft Joint To Steering Gear
    G08143407
  3. After temporarily installing the joint bolt to the intermediate shaft joint, shake the intermediate shaft up and down to verify that the joint bolt is installed to the groove of the steering gear.

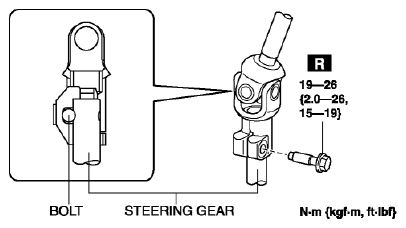

    Fig 3: Steering Gear And Joint Bolt With Torque Specification
    G08143408
  4. Tighten the joint bolt to the specified torque.
