Steering Wheel And Column Removal/Installation [Without Advanced Keyless Entry And Push Button Start System]: Notes
WARNING:
- Handling the air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS .) (See AIR BAG SYSTEM SERVICE CAUTIONS .)
- Remove the front scuff plate (driver-side). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Remove the front side trim (driver-side). (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)
- Remove the decoration panel (driver-side). (See DECORATION PANEL REMOVAL/INSTALLATION .)
- Remove the hood release lever. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
- Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)

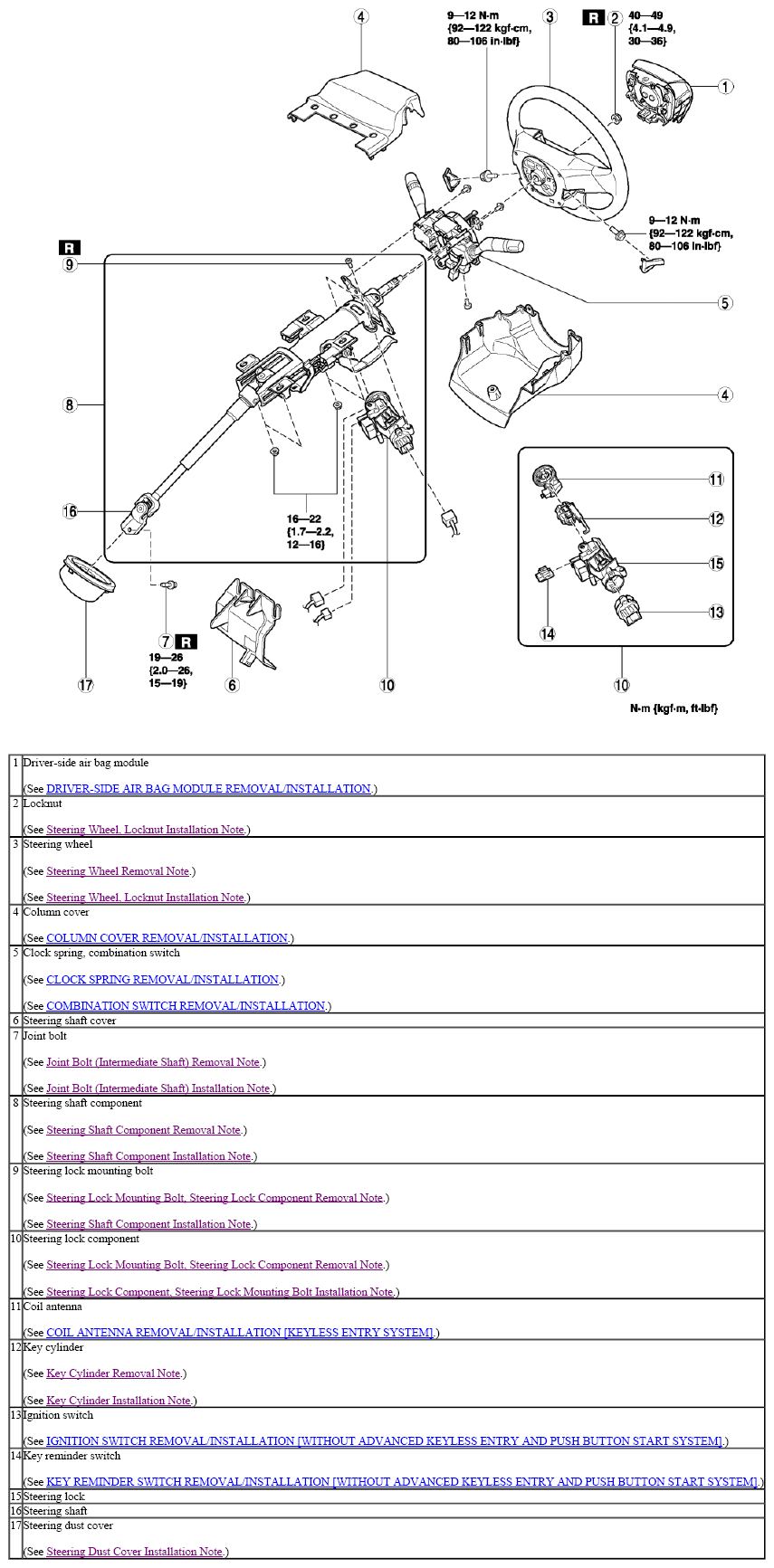

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- If the key cylinder is replaced, perform programming for the immobilizer system related parts. (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [KEYLESS ENTRY SYSTEM] .)
