Steering Lock Component, Steering Lock Mounting Bolt Installation Note

  1. Assemble section A of the steering lock component to the section B of the steering shaft.

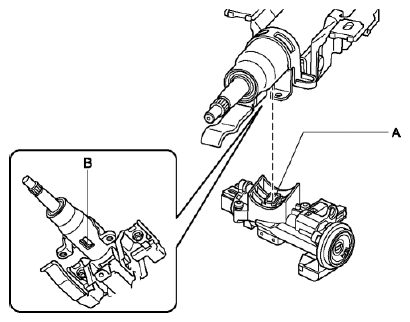

    Fig 1: Installing Steering Lock Component
    G08143403
  2. Temporarily install the steering lock component to the steering shaft using a new steering lock mounting bolt.
  3. Tighten the steering lock mounting bolt until the head breaks off.

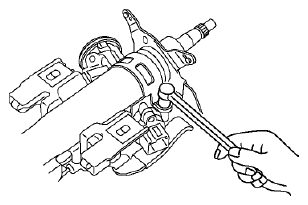

    Fig 2: Tightening Steering Lock Mounting Bolt
    G08143404
