Control System Device And Control Relationship Chart

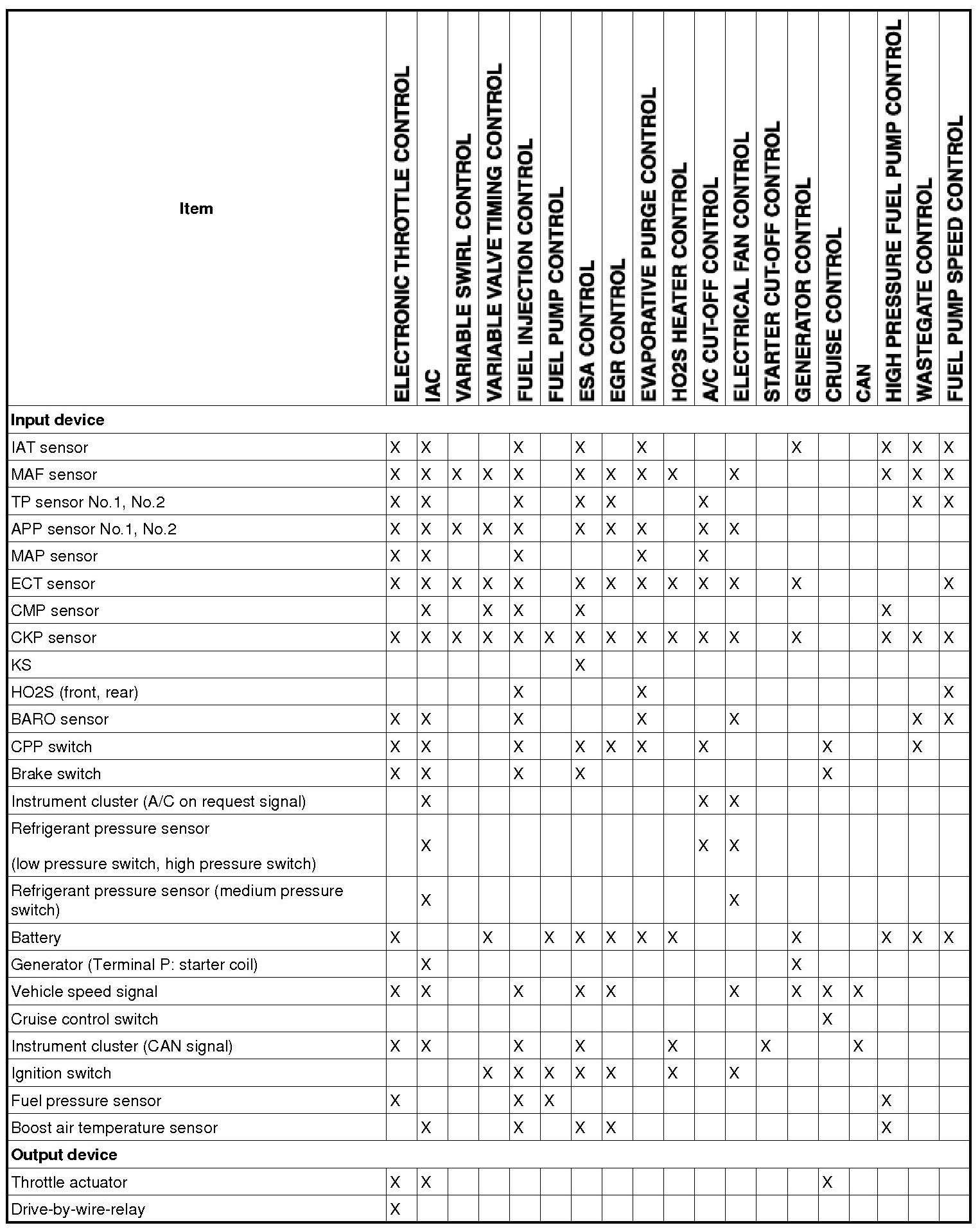

CONTROL SYSTEM DEVICE AND CONTROL RELATIONSHIP CHART [L3 WITH TC]
X: Applied
