Power Door Lock Switch: Testing and Inspection
DOOR LOCK SWITCH INSPECTION
1.

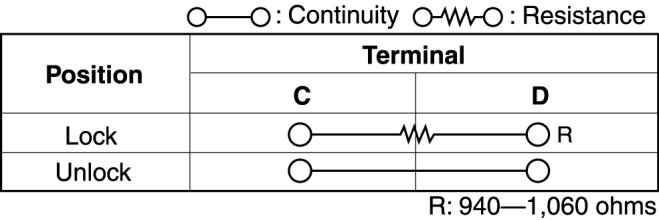

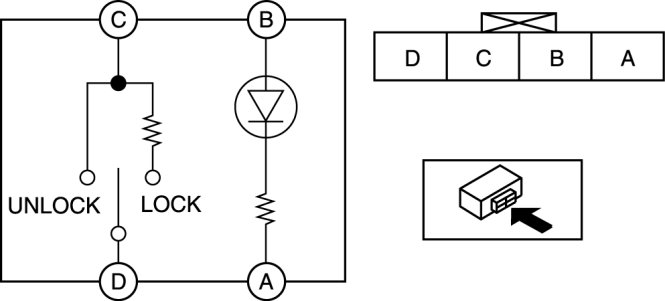

Inspect for continuity between the door lock switch terminals using an ohmmeter.
-
If not as specified, replace the door lock switch.
