Home >> Mazda >> 2012 >> CX-7 FWD L4-2.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Fuse Block (F-02)
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

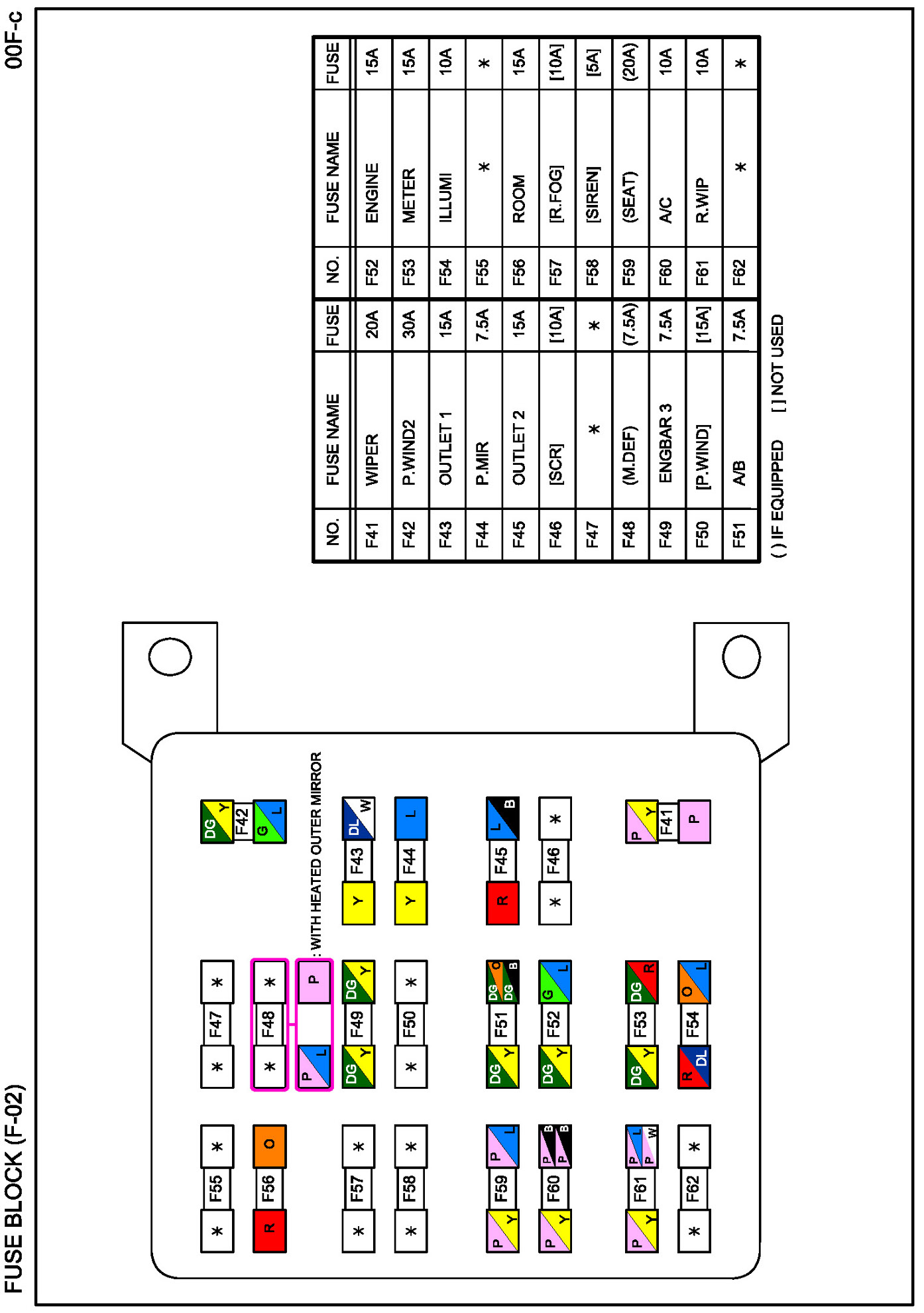

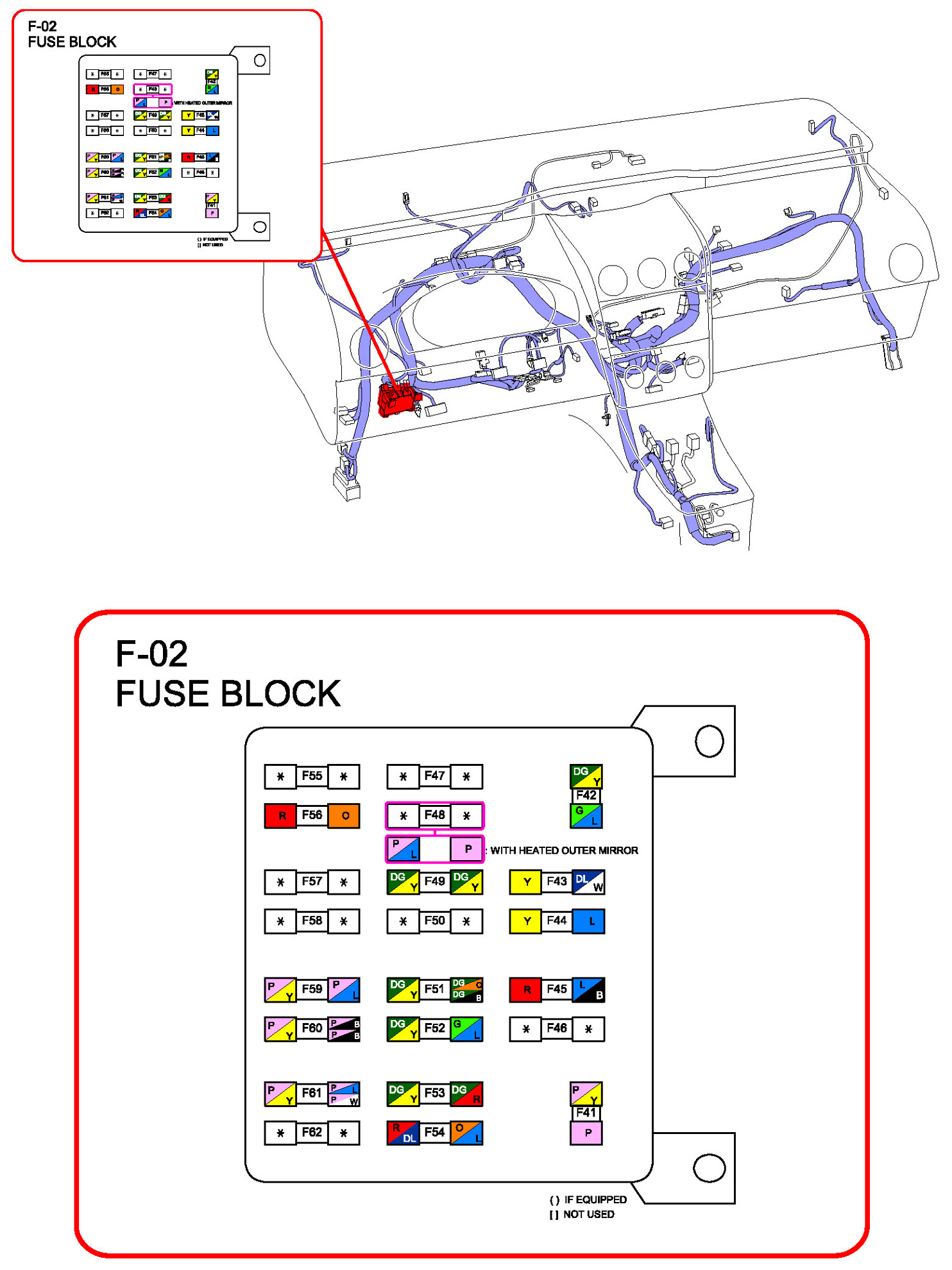

Fuse Block (F-02)
