Removal and Replacement

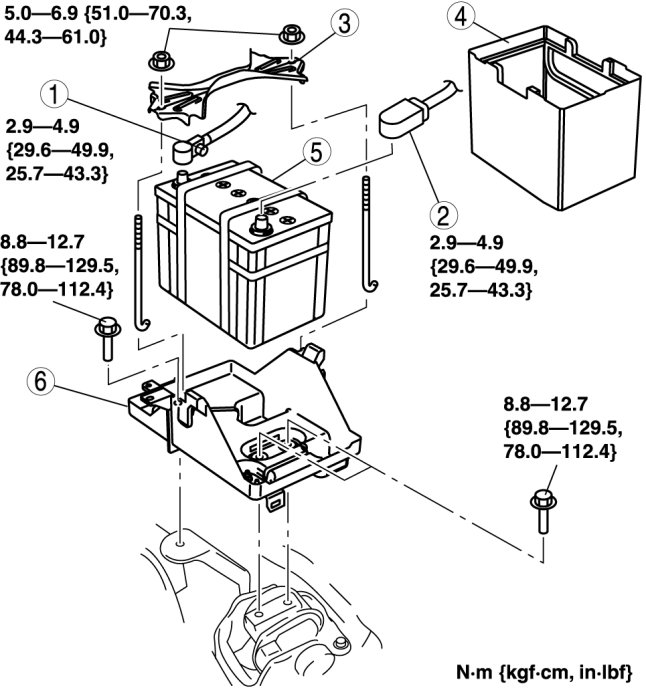

BATTERY REMOVAL/INSTALLATION [MZI-3.7]

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

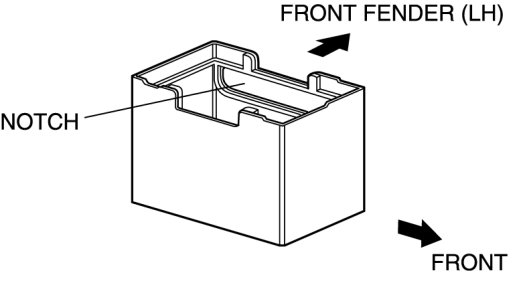

Battery Box Installation Note

1. Install the battery box so that the side with the notch points toward the front fender (LH).
