Front Map Light Removal/Installation

FRONT MAP LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

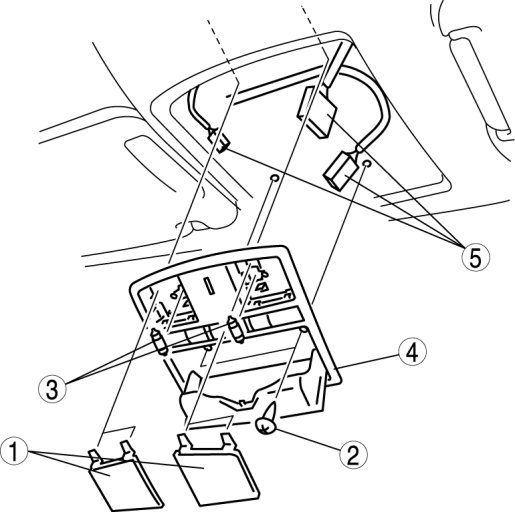

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.

Lens Removal Note

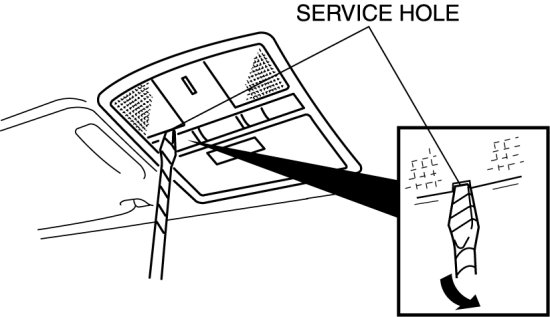

1. Insert a tape-wrapped flathead screwdriver into the service hole and pry with the screwdriver in the direction shown by the arrow to remove the lens.
