Keyless Entry Receiver: Service and Repair

KEYLESS RECEIVER REMOVAL/INSTALLATION

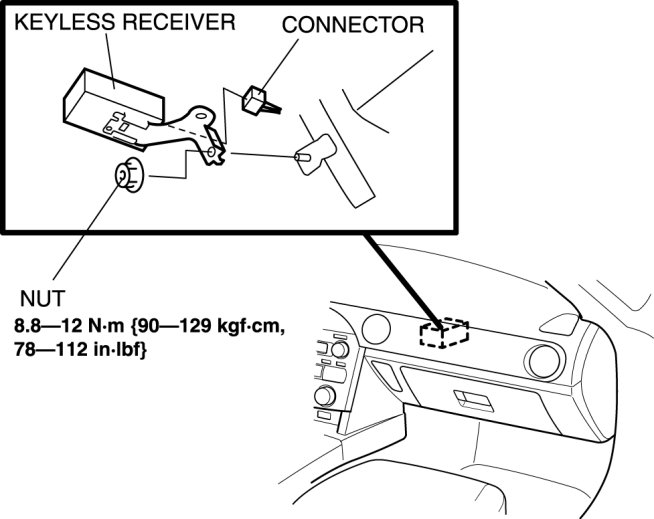

Front

1. Disconnect the negative battery cable. Removal and Replacement

2. Remove the glove compartment lid. Service and Repair

3. Disconnect the keyless receiver module connector.

4. Remove the nut, then remove the keyless receiver (front).






5. Install in the reverse order of removal.

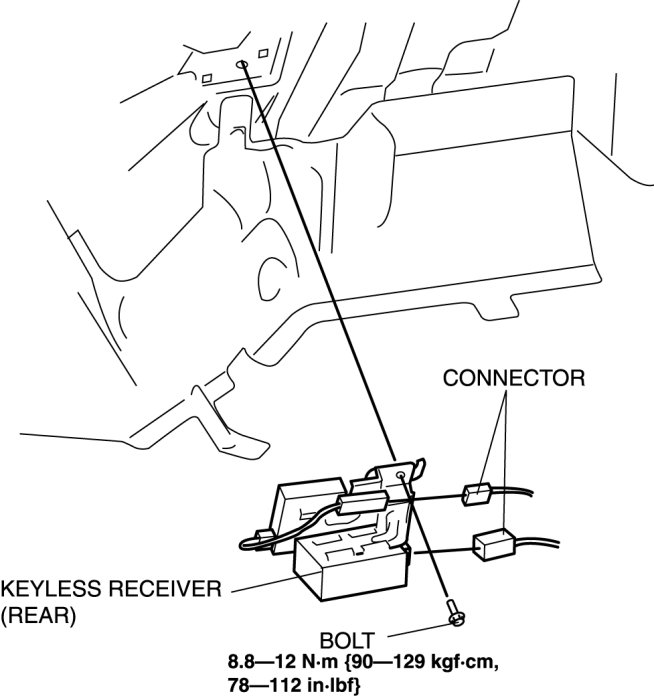

Rear

1. Disconnect the negative battery cable. Removal and Replacement

2. Remove the trunk side trim.

3. Remove the nuts.

4. Disconnect the connector.

5. Remove the keyless receiver (rear).






6. Install in the reverse order of removal.
