Cabin Temperature Sensor / Switch: Service and Repair

PASSENGER COMPARTMENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the lower panel. Lower Panel Removal/Installation

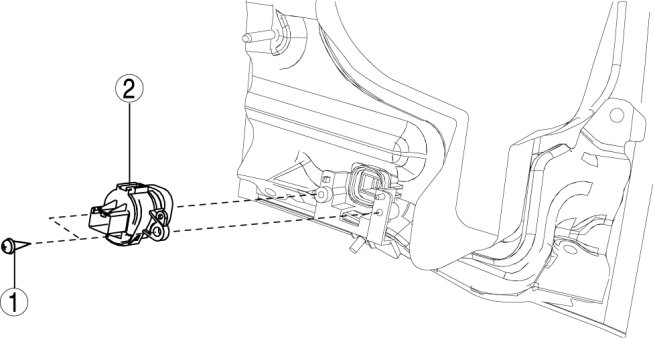

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
