Air Flow Meter/Sensor: Service and Repair

MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION [LF]

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Disconnect MAF/IAT sensor connector.

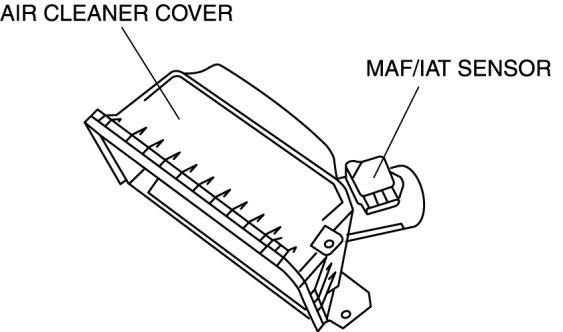

4. Remove the MAF/IAT sensor.






5. Install in the reverse order of removal.

- MAF/IAT sensor tightening torque
- 0.55-0.82 Nm {5.7-8.3 kgf-cm, 4.9-7.2 in-lbf}
