Emission Control Systems: Locations





EMISSION SYSTEM LOCATION INDEX [LF]

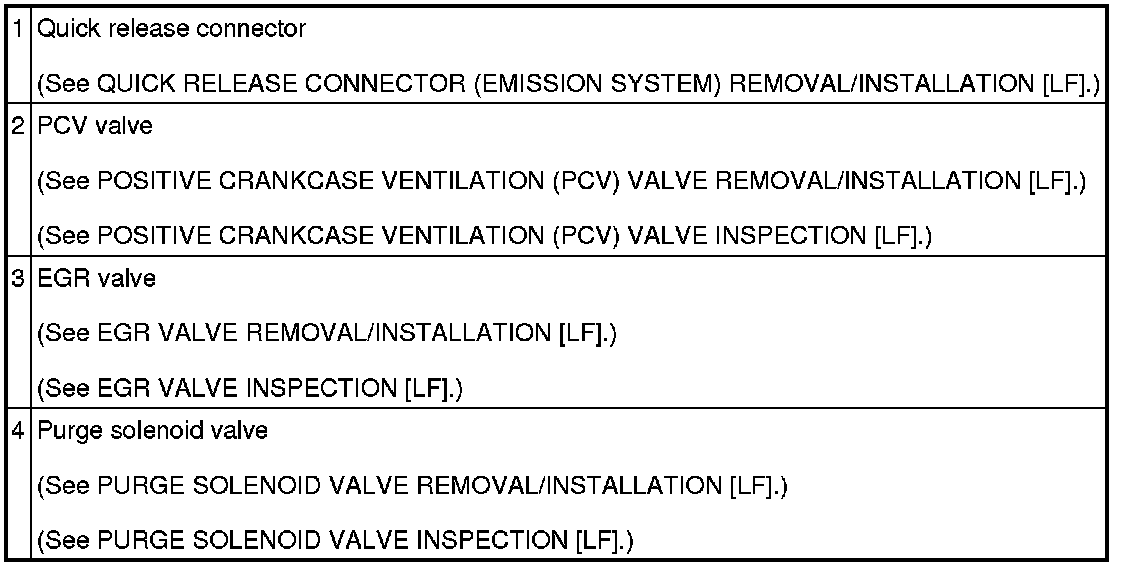

Engine Compartment Side

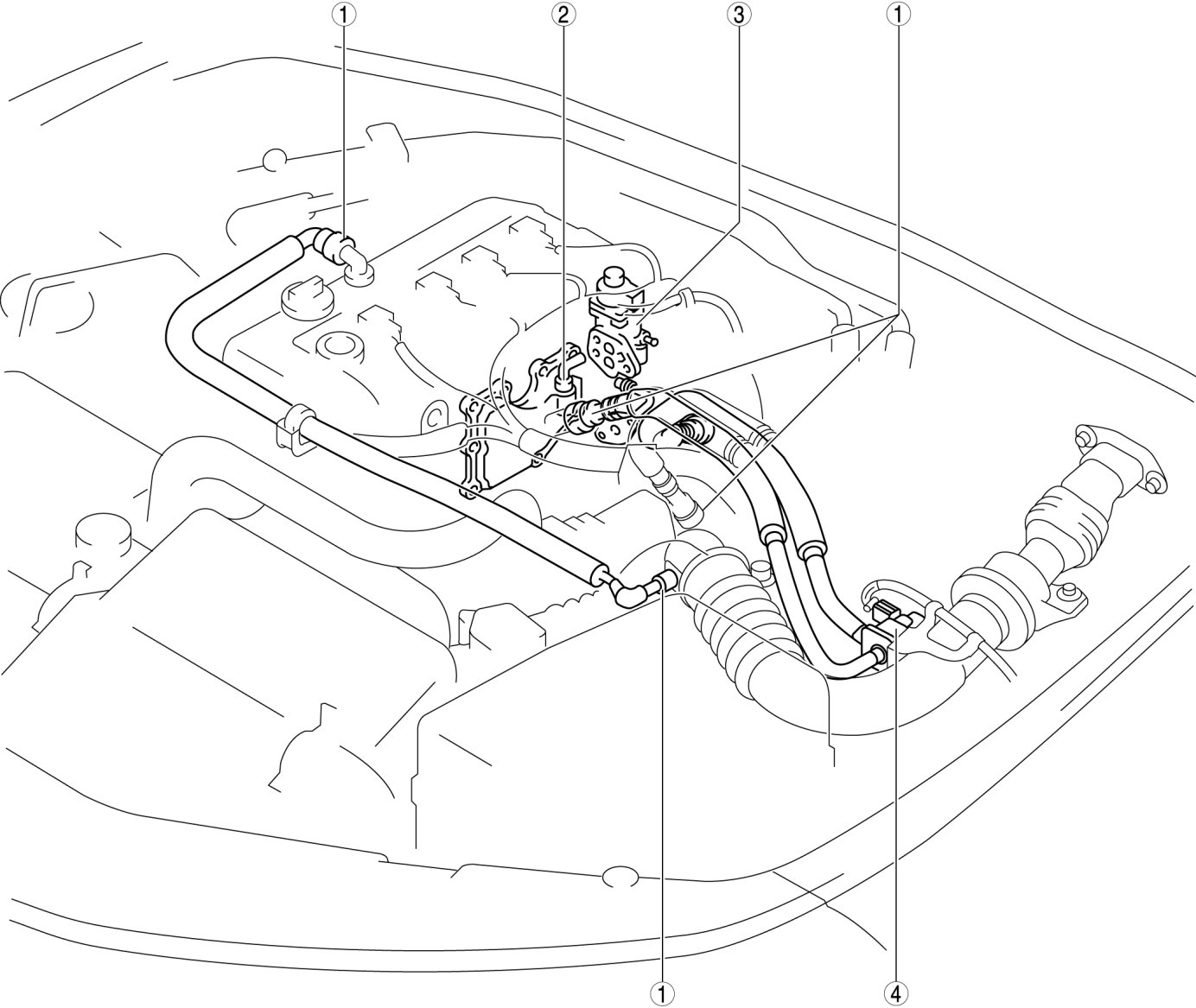

Except 6MT

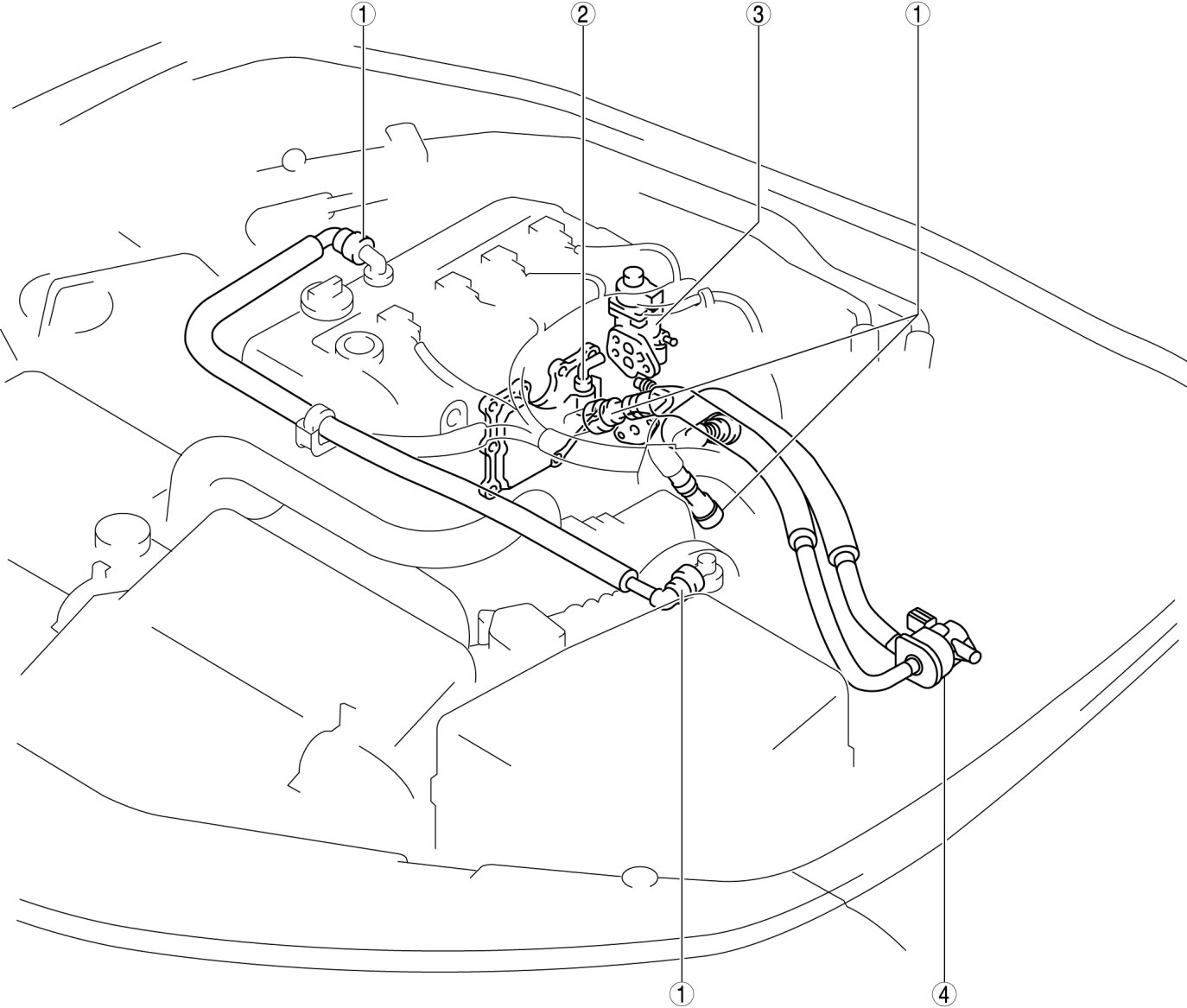

6MT

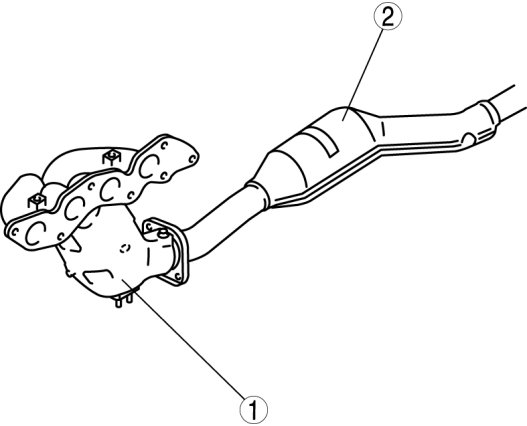

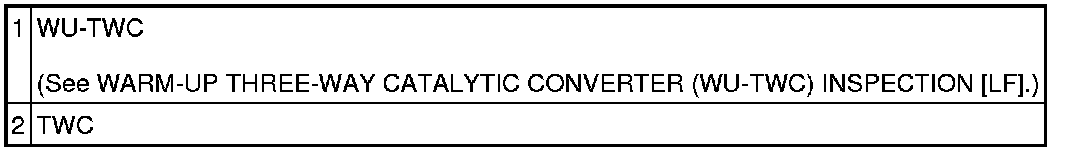

Exhaust System Side

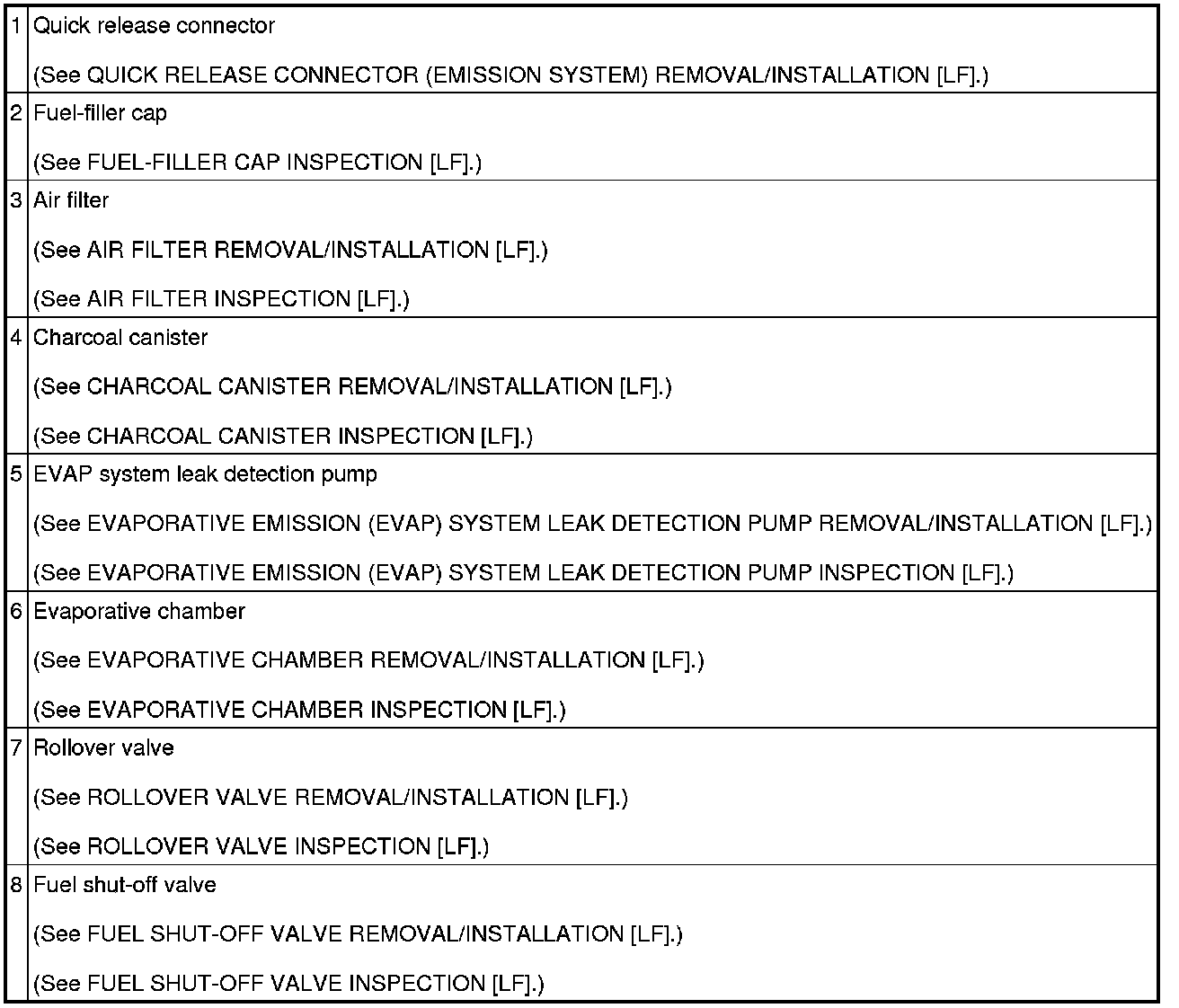

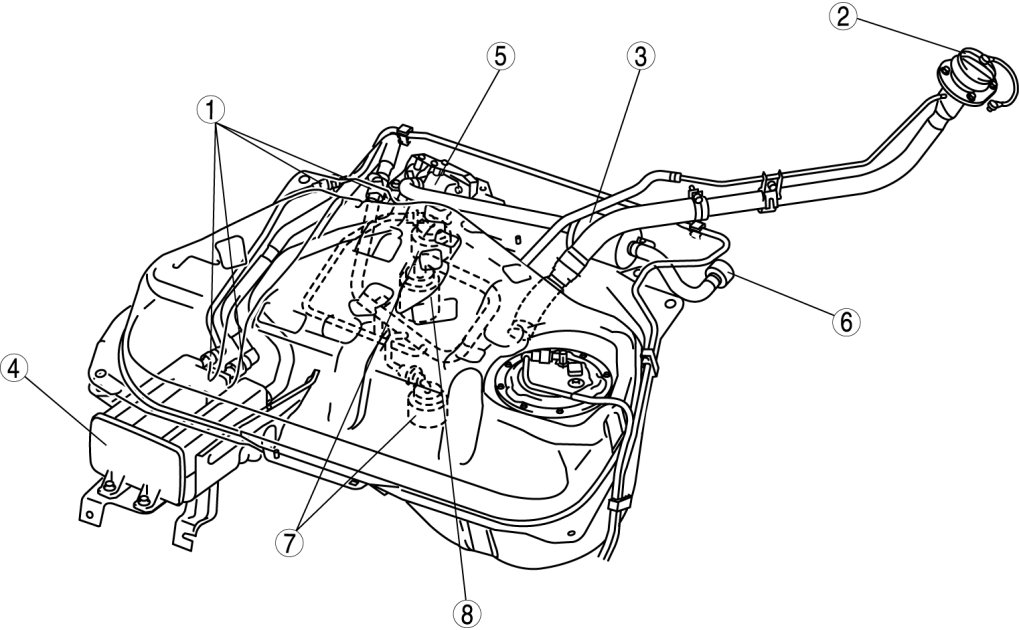

Fuel Tank Side
