Auxiliary Power Outlet: Service and Repair

ACCESSORY SOCKET REMOVAL/INSTALLATION

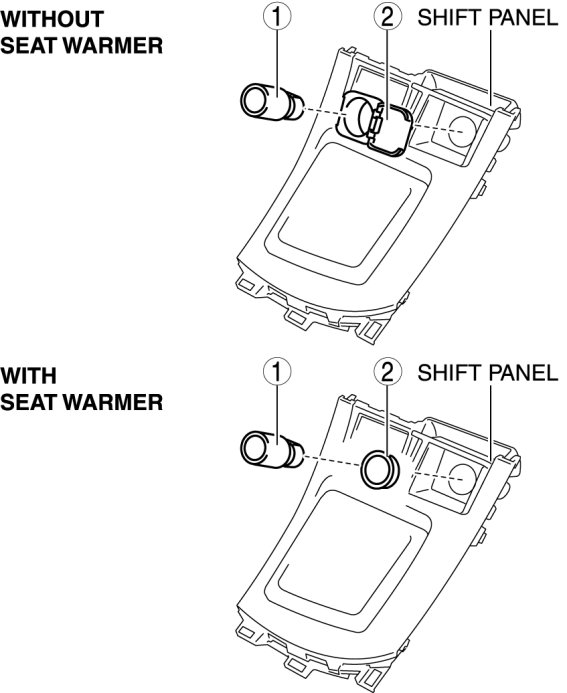

Front

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the upper panel. Upper Panel Removal/Installation

3. Remove the shift lever knob. (MTX) Service and Repair

4. Remove the selector lever knob. (ATX) Service and Repair

5. Remove the shift panel Shift Panel Removal/Installation

6. Remove in the order indicated in the table.










7. Install in the reverse order of removal.

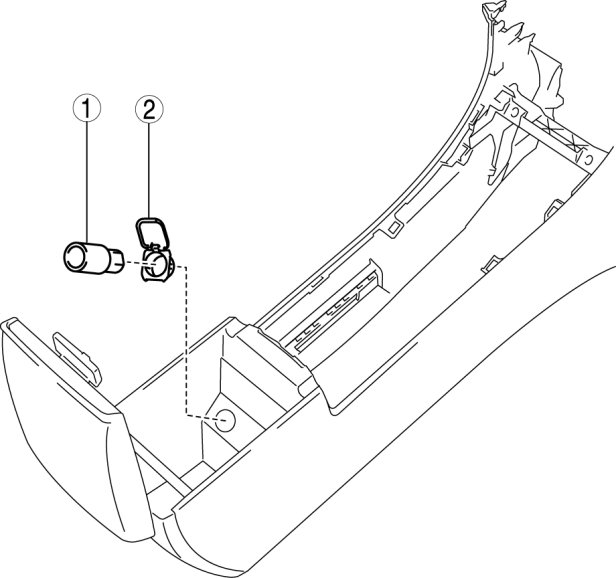

Rear

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Upper panel Upper Panel Removal/Installation

b. Shift lever knob (MTX) Service and Repair

c. Selector lever knob (ATX) Service and Repair

d. Shift panel Shift Panel Removal/Installation

e. Side wall Side Wall Removal/Installation

f. Console Console Removal/Installation

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

Socket Removal Note

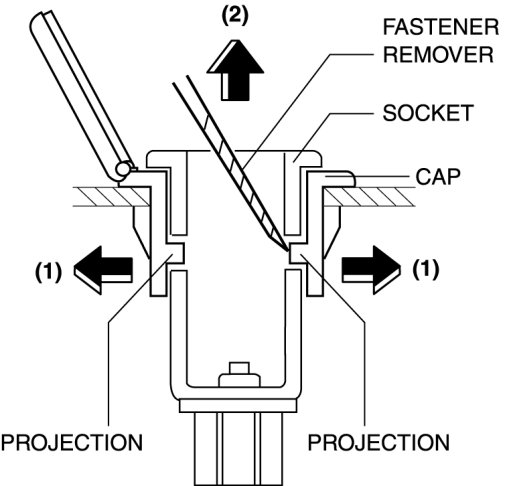

1. Remove the socket in the direction of the arrow (2) shown in the figure while opening the caps in the direction of the arrow (1) using a tape-wrapped fastener remover.






Cap Removal Note

1. Remove the cap in the direction of the arrow (2) shown in the figure while pressing the cap tabs in the direction of the arrow (1).
