Wiper Switch: Service and Repair

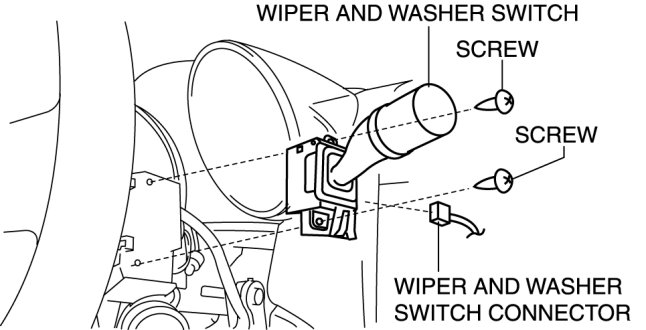

WIPER AND WASHER SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the column cover Service and Repair

3. Disconnect the wiper and washer switch connector.






4. Remove the screws.

5. Remove the wiper and washer switch.

6. Install in the reverse order of removal.
