Body Control Module (BCM) Removal/Installation

CAUTION:
  • When replacing the BCM, the configuration procedure must be performed before removing the BCM. Replacing the BCM without performing the configuration procedure will result in system malfunction.
  1. Perform the BCM configuration when replacing it. (See BODY CONTROL MODULE (BCM) CONFIGURATION ).
  2. Disconnect the negative battery cable.
  3. Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION ).
  4. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION ).
  5. Disconnect the connectors at the position shown in the figure.
  6. Remove the nuts.

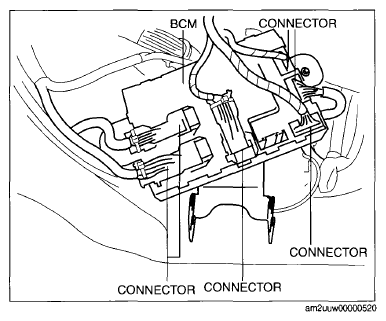

    Fig 1: Identifying BCM And Connectors
    G09133683

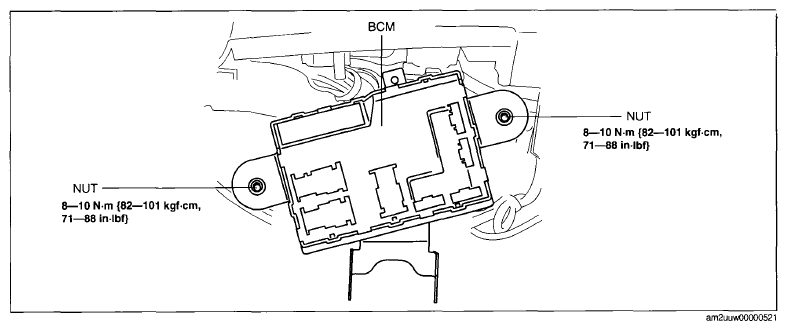

    Fig 2: BCM Mounting Nuts With Torque Specifications
    G09133684
  7. Remove the BCM.
  8. Install in the reverse order of removal.
