Brake Pipe Installation Note

  1. Align the marks made before removal and install the brake pipe into the DSC HU/CM referring to the figure.

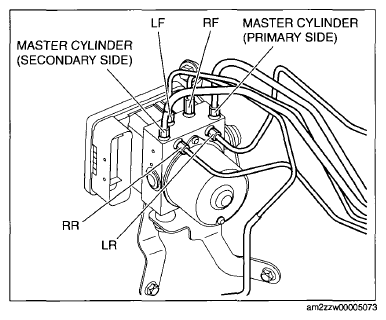

    Fig 1: Identifying Master Cylinder Alignment Mark (Primary Side & Secondary Side)
    G09132541
