Front Power Window Regulator Removal/Installation

  1. To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 80 mm {3.1 in}.
    Fig 1: Positioning Front Door Glass Distance From Top Of Front Door Glass To Upper Part Of Front Beltline Molding
    G08158571
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    5. Front power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
  4. Remove the nuts.

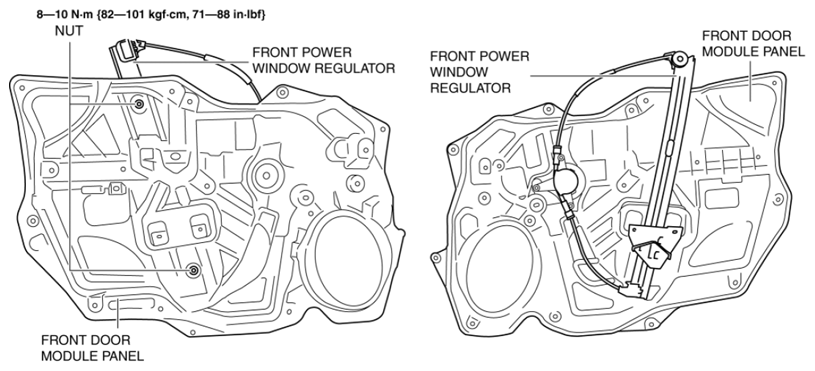

    Fig 2: Front Door Module Panel And Nuts With Torque Specification
    G08158572
  5. Install in the reverse order of removal.
    CAUTION: When installing, do not allow the cable to come out from the drum housing.
