Not Reusing Windshield

NOTE: If it is difficult to cut sealant, use piano wire and follow the procedure under "Reusing Windshield".
  1. WARNING: Using piano wire with bare hands can cause injury. Always wear gloves when using piano wire.
  1. Cut out the sealant all around the glass using a sealant remover.

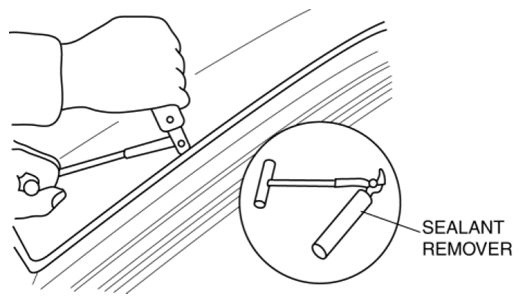

    Fig 1: Cutting Sealant Around Glass Using Sealant Remover
    G08158590
  2. Remove the windshield.
