Brake Pipe Installation Note

  1. Align the marks made before removal and install the brake pipe into the DSC HU/CM referring to the figure.

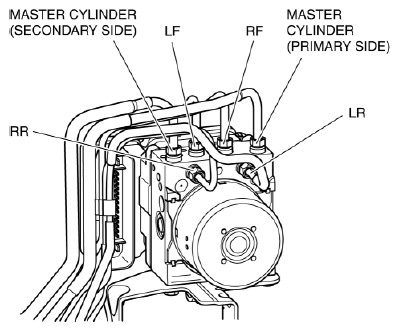

    Fig 1: Identifying Brake Pipe Locations
    G08156074
