Manifold Absolute Pressure (Map) Sensor/Boost Air Temperature Sensor Removal/Installation
NOTE:
- Because the boost air temperature sensor is integrated in the MAP sensor, replacing the boost air temperature sensor includes replacement of the MAP sensor/boost air temperature sensor.
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .)
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .)
- Remove the dipstick pipe. (See OIL PAN REMOVAL/INSTALLATION .)
- Disconnect the MAP sensor/boost air temperature sensor connector.

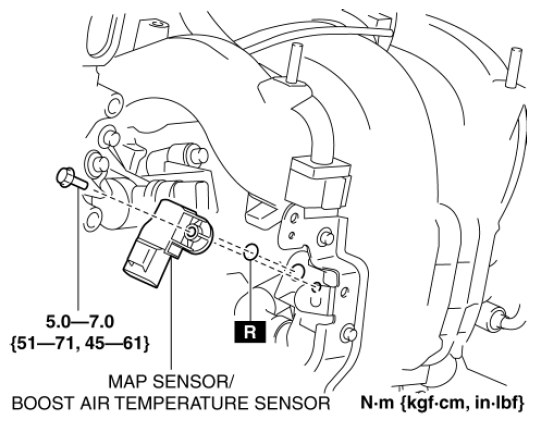

- Remove the MAP sensor/boost air temperature sensor.
- Install in the reverse order of removal.
