Continuity Inspection
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .)
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .)
- Disconnect the neutral switch connector. (See NEUTRAL SWITCH REMOVAL/INSTALLATION .)

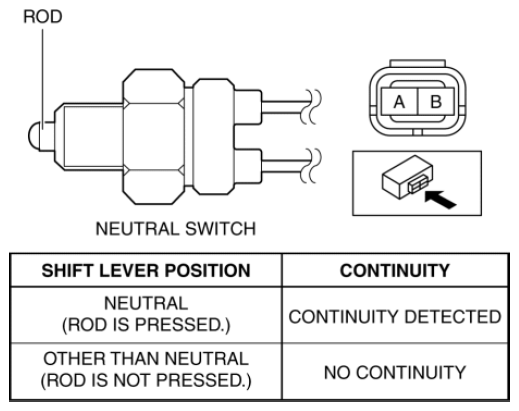

- When the shift lever is in neutral and in a position other than neutral, verify that the continuity between neutral switch terminals A and B is according to the following table:
- If not as verified, replace the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION .)
